HIPO-100
100kV Advanced DC HiPot
Output: 0.0-100.0kV ±100V at 1mA (continuous)
Fully programmable voltage, current, and test duration
kV/µA/TΩ real-time and min/max measurements

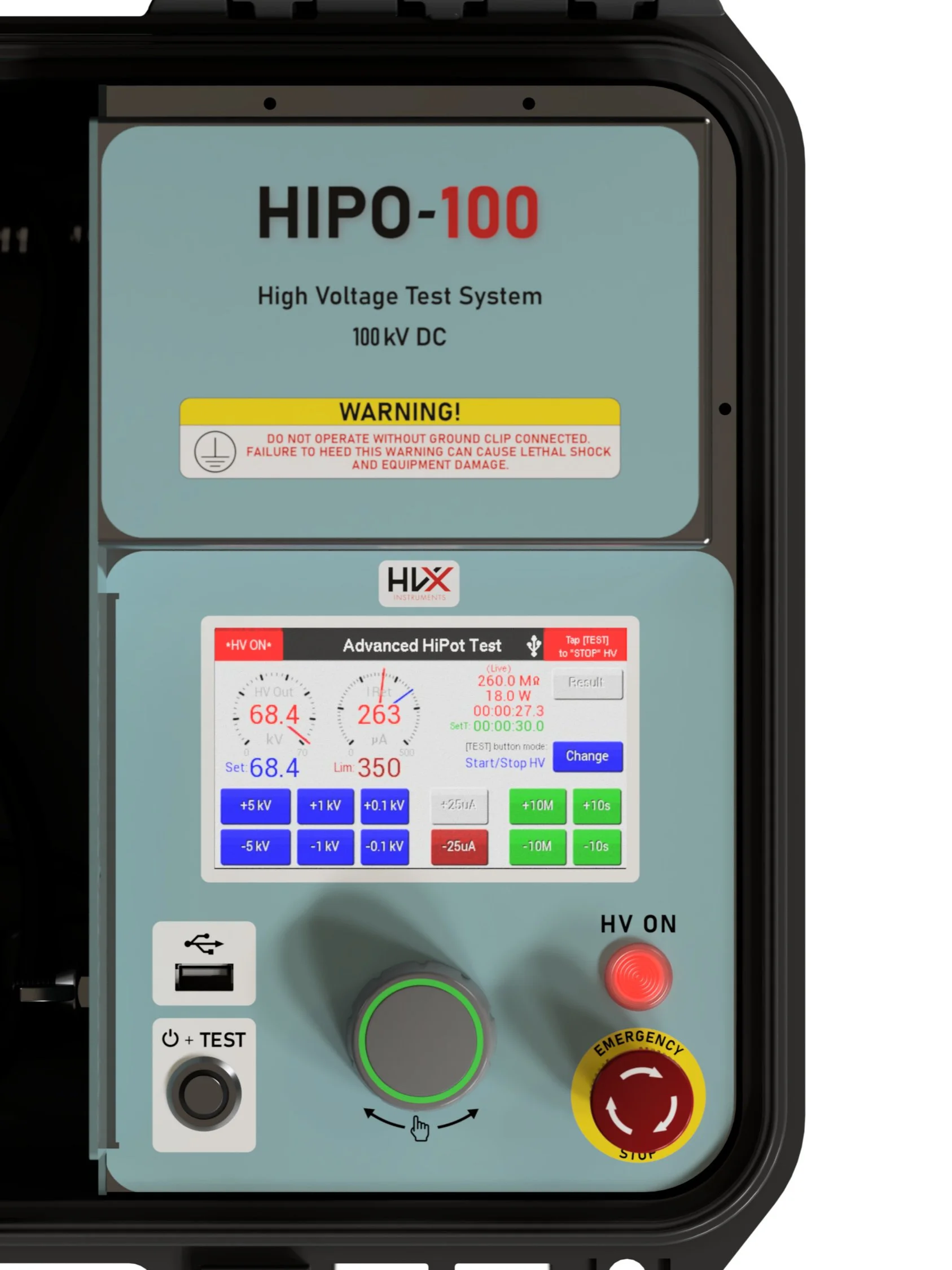

Touch-screen control with advanced automatic and manual testing modes
Very quick setup - cable storage & usage from within the integrated transport/operation case (rack-mounting version also available for lab/factory applications)
The HIPO-100 is an advanced 100kV/1mA digitally controlled HiPot unit suitable for a wide range of high voltage testing tasks. With the same vacuum interrupter testing functionality as the VIPO units, the HIPO series have higher output power plus improved regulation, accuracy, and testing modes.
The unit can also be fully remotely controlled for advanced/custom testing applications.
| Feature | Specification |
|---|---|
| Output | 0.0 to 100.0 kV DC (100V resolution) 1.0mA Max (continuous, at max V) |
| Output Voltage Accuracy | 1%, <0.5% ripple (20-100kv) |
| Current Measurement | 0-1100uA, +/-1uA resolution, 1% accuracy at FS |
| Test Duration (user setting) | 1s resolution up to 24 hours, or Continuous |
| Discharge Time | <3 seconds |
| HV Present Warning | High-Brightness Visual Indicator and Audible Alert |
| Pass/Fail Limit (user setting, VI Test mode) | 100μA, 200μA and 300μA |
| Test Stop Limit (user setting, HiPot mode) | 10-1000µA in 10µA steps |
| Input Power | 100-240Vac, 47-63 Hz, 2A |
| Battery Power | HIPO-100B only: 14.4V/3400mAh, Li-ion, user replaceable |
| Display | 4.3” 480x272 IPS TFT, Ultra-bright (visible under bright sunlight) |
| Control | Touch control (gloved hand compatible) + Power/Home/Test switch Emergency Stop button |
| Start-up time | Instrument is ready to use within 2s of power button pressed |
| Test Results Storage | 200 tests |
| Test Results Transfer | Via USB flash drive |
| Remote Control | Via USB virtual COM port (ASCII protocol, using any serial-capable scripting language or test automation package) |
| Date/Time | Internal real-time-clock, battery backup (5 year lifetime, user replaceable) |
| Firmware Updates | Field updatable via USB flash drive |
| Printer | Built-in 2.25-inch Thermal Printer |
| Dimensions | 410x310x150mm |
| Weight | 9.6kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -30 °C to +70 °C |
| Humidity | 5% — 95% RH, non-condensing |
| Protection Class | IP67 (within transport/operation case, lid closed) |
HIPO-100 Specifications
HVX Products Overview
| VIPO-85 | HIPO-50 | HIPO-100 | |
|---|---|---|---|
| Output (continuously rated) |
1.0 to 85.0 kV DC (1kV resolution) 0.3 mA |
0.0 - 50.0 kV (100V resolution) 2.0 mA |
0.0 - 100.0 kV (100V resolution) 1.0 mA |
| Accuracy / Ripple | 1.5% / 2% | 1% / 0.5% | 1% / 0.5% |
| Current Limit (user set, HiPot Mode) |
25-300µA in 25µA steps | 10-2000µA in 10µA steps | 10-1000µA in 10µA steps |
| HiPot Functionality | Basic | Advanced | Advanced |
| Built-in Printer | ✓ | - | - |
| Battery version | ✓ | ✓ | ✓ |
| Rack mount version | - | ✓ | ✓ |
| Guided VI Test | ✓ | ✓ | ✓ |
| Remote control (USB serial port) |
- | ✓ | ✓ |
